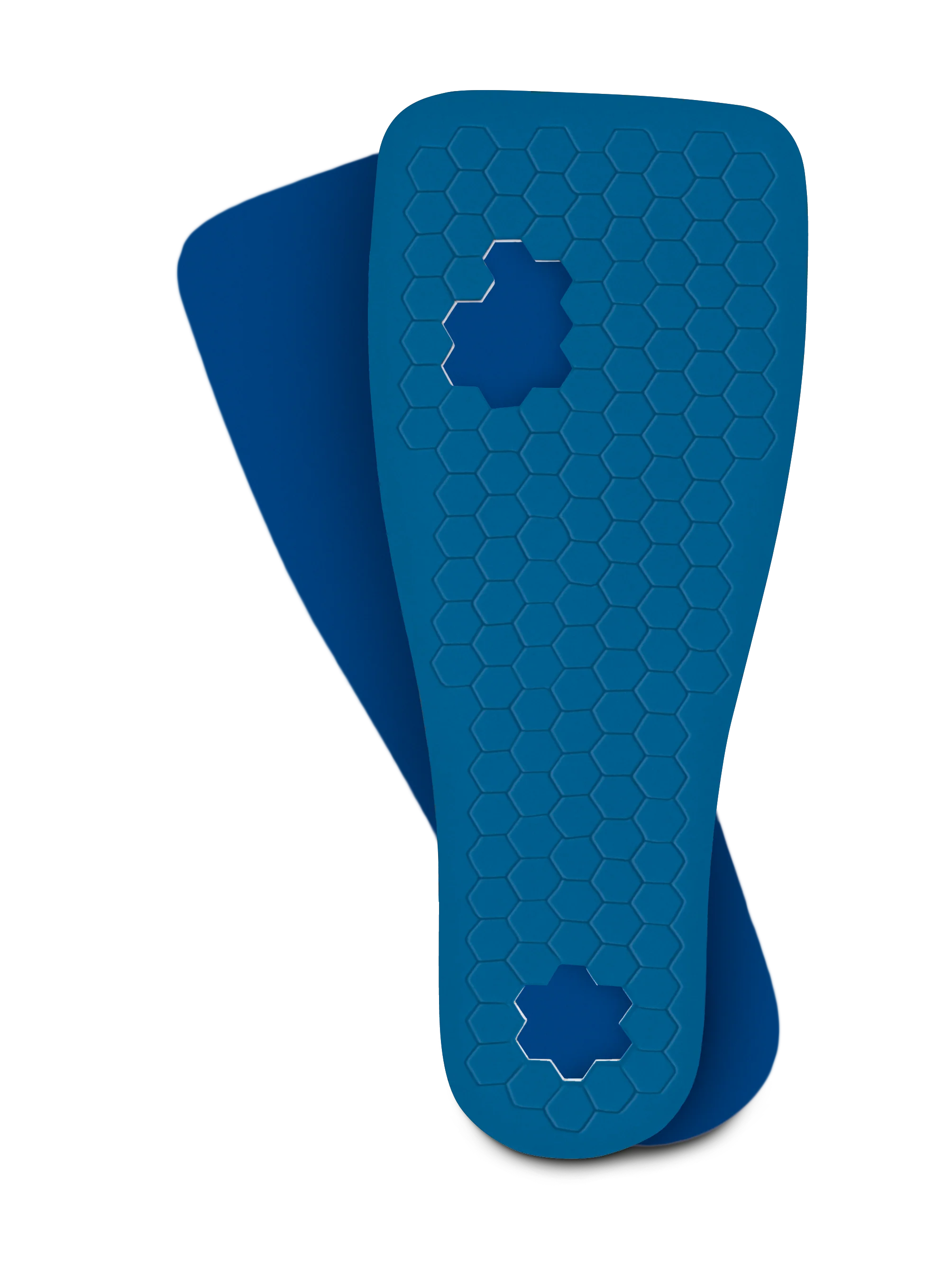

Darco PegAssist Insole PTQ Series

The DARCO PTQ PegAssist Offloading Insole uses a removable-peg chassis to off-load the plantar surface of the foot after surgery or when wounds are present. By pulling out individual pegs beneath a wound or ulcer, pressure is redirected away from that area — reducing pressure by as much as 60%, according to the manufacturer, while keeping the patient ambulatory. Sold as a single insole.

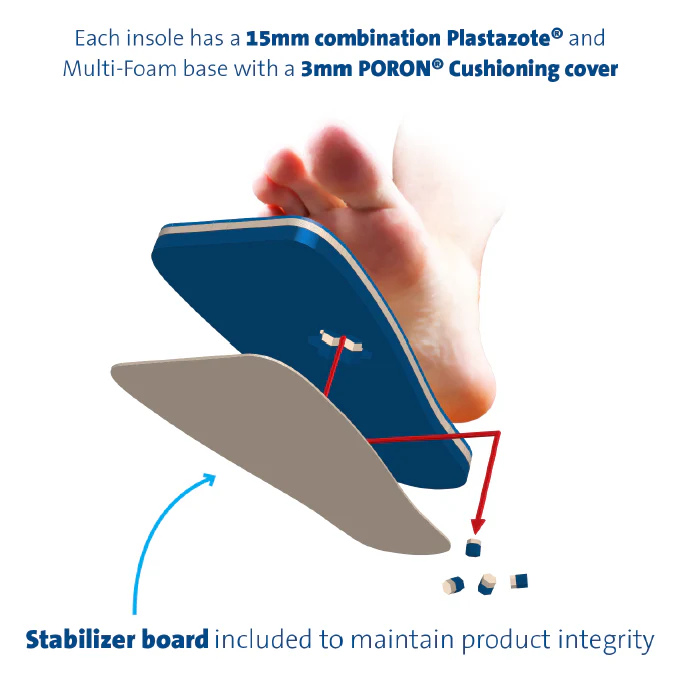

The insole has a 15 mm combination Plastazote and Multi-Foam base with a 3 mm Poron cushioning cover, which helps eliminate ring edema and edge abrasion around the off-loaded area. An included stabilizer board maintains the insole's integrity in use. The PTQ Series (blue pegs) is designed specifically to fit DARCO's Square-Toe MedSurg shoe.

How It Works

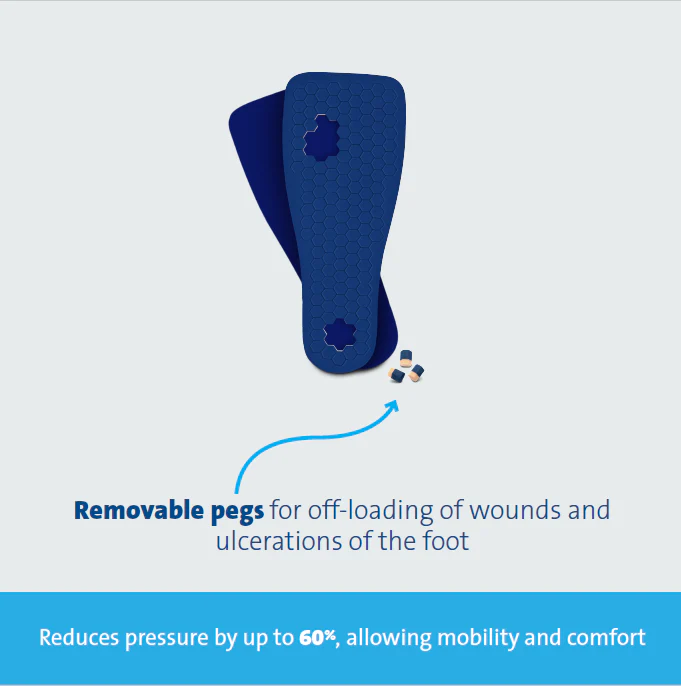

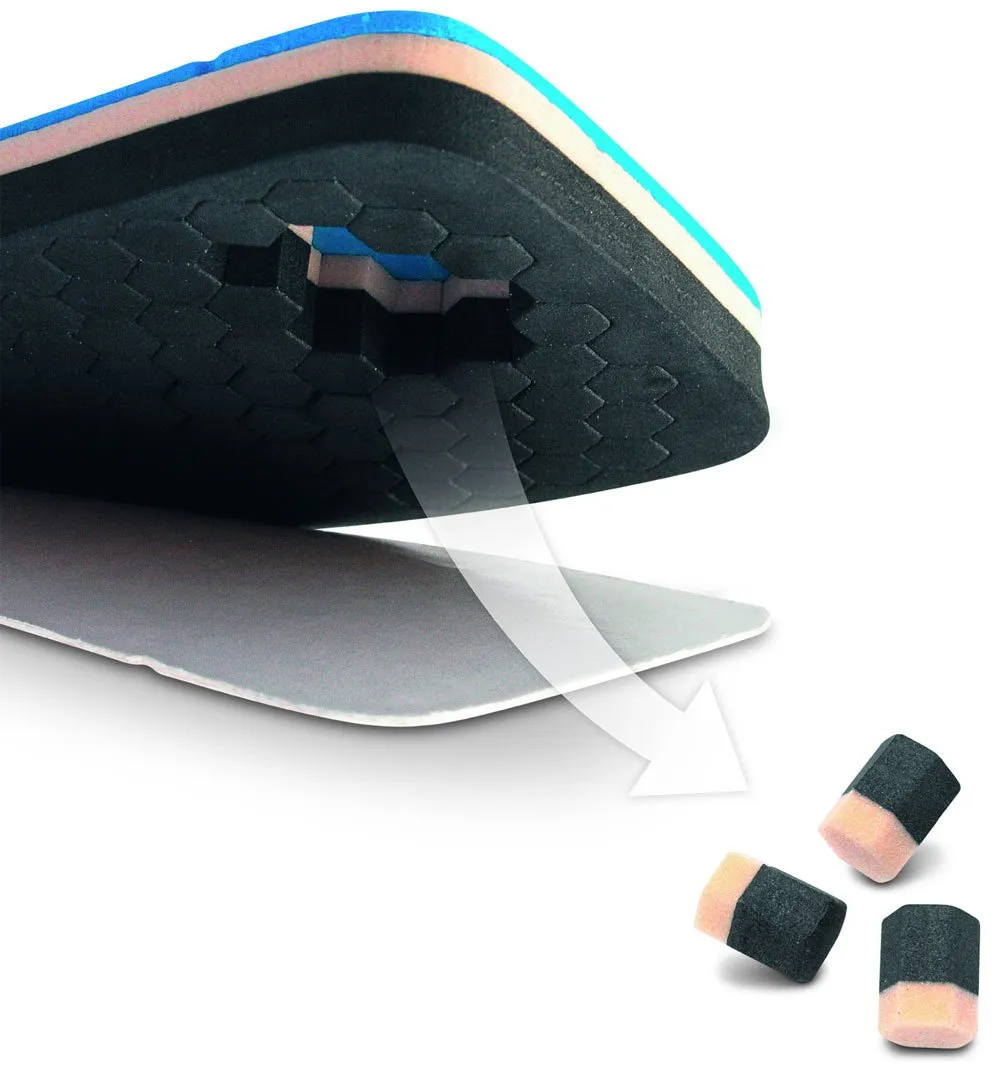

The peg chassis is filled with removable pegs. To off-load a specific wound or pressure point, the pegs directly beneath it are pulled out, creating a recessed area so that region bears less load while the rest of the foot stays supported. This allows targeted, adjustable off-loading that can be modified as healing progresses.

Indications

• Off-loading
• Wound care management
• Pain management
• Foot trauma
• Post-operative treatment

Contraindications

• Open fractures

Consult a healthcare professional to confirm the PegAssist insole is appropriate for your condition.

Features

• Removable-peg chassis for targeted, adjustable off-loading of wounds and ulcerations
• Reduces pressure by as much as 60% while keeping the patient ambulatory
• 15 mm Plastazote and Multi-Foam base with a 3 mm Poron cushioning cover
• Poron cover helps prevent ring edema and edge abrasion
• Included stabilizer board maintains product integrity
• Designed to fit the DARCO Square-Toe MedSurg shoe
• Patented design (US Patent #8201346)

Specifications

Type	Removable-peg off-loading insole
Series	PTQ (blue pegs)
Compatible Shoe	DARCO Square-Toe MedSurg (MQ)
Base	15 mm Plastazote and Multi-Foam
Cover	3 mm Poron
Includes	Stabilizer board
Quantity	Sold as a single insole

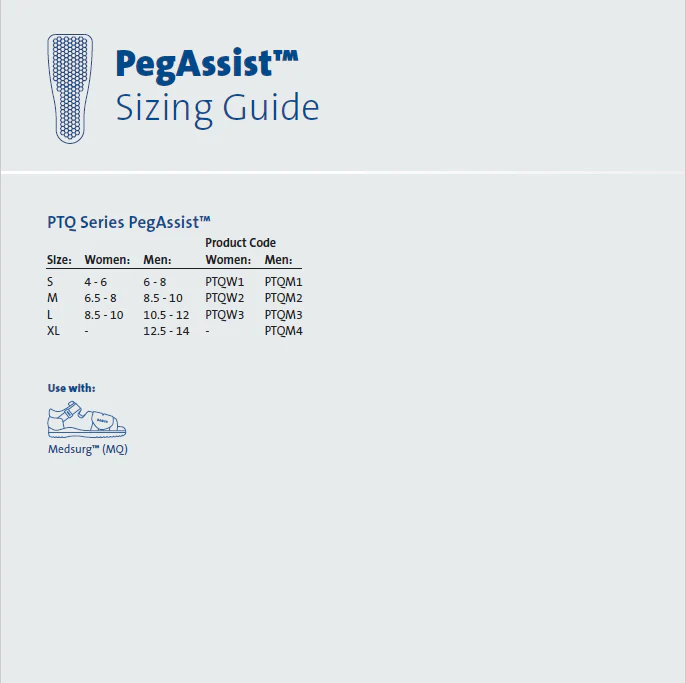

Sizing

The PTQ Series is sized separately for men and women. Match your shoe size to the chart below and select the corresponding catalog number.

Size	Men's Shoe Size	Catalog #
Small	6 – 8	PTQM1
Medium	8.5 – 10	PTQM2
Large	10.5 – 12	PTQM3
X-Large	12.5 – 14	PTQM4

Size	Women's Shoe Size	Catalog #
Small	4 – 6	PTQW1
Medium	6.5 – 8	PTQW2
Large	8.5 – 10	PTQW3

Package Includes

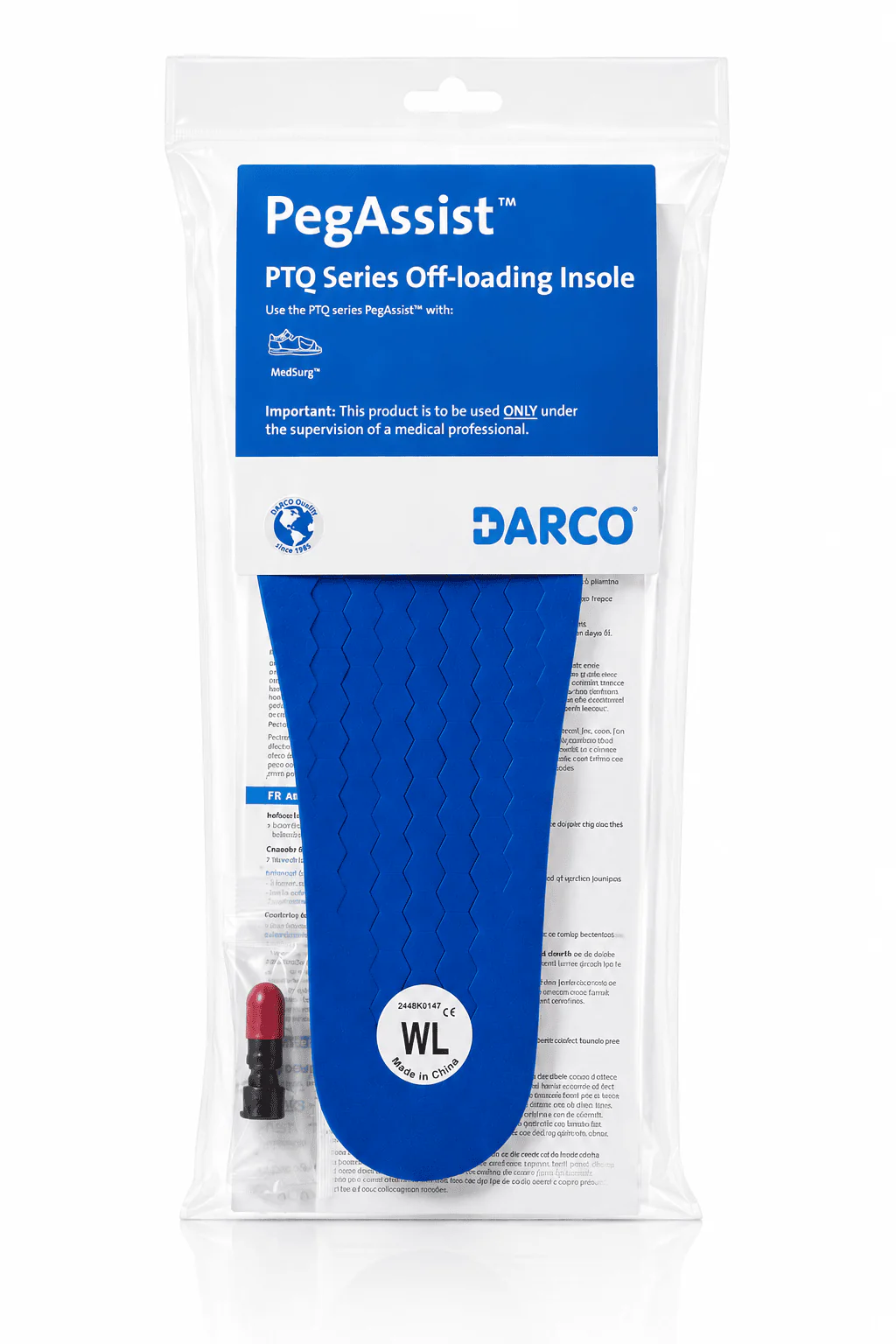

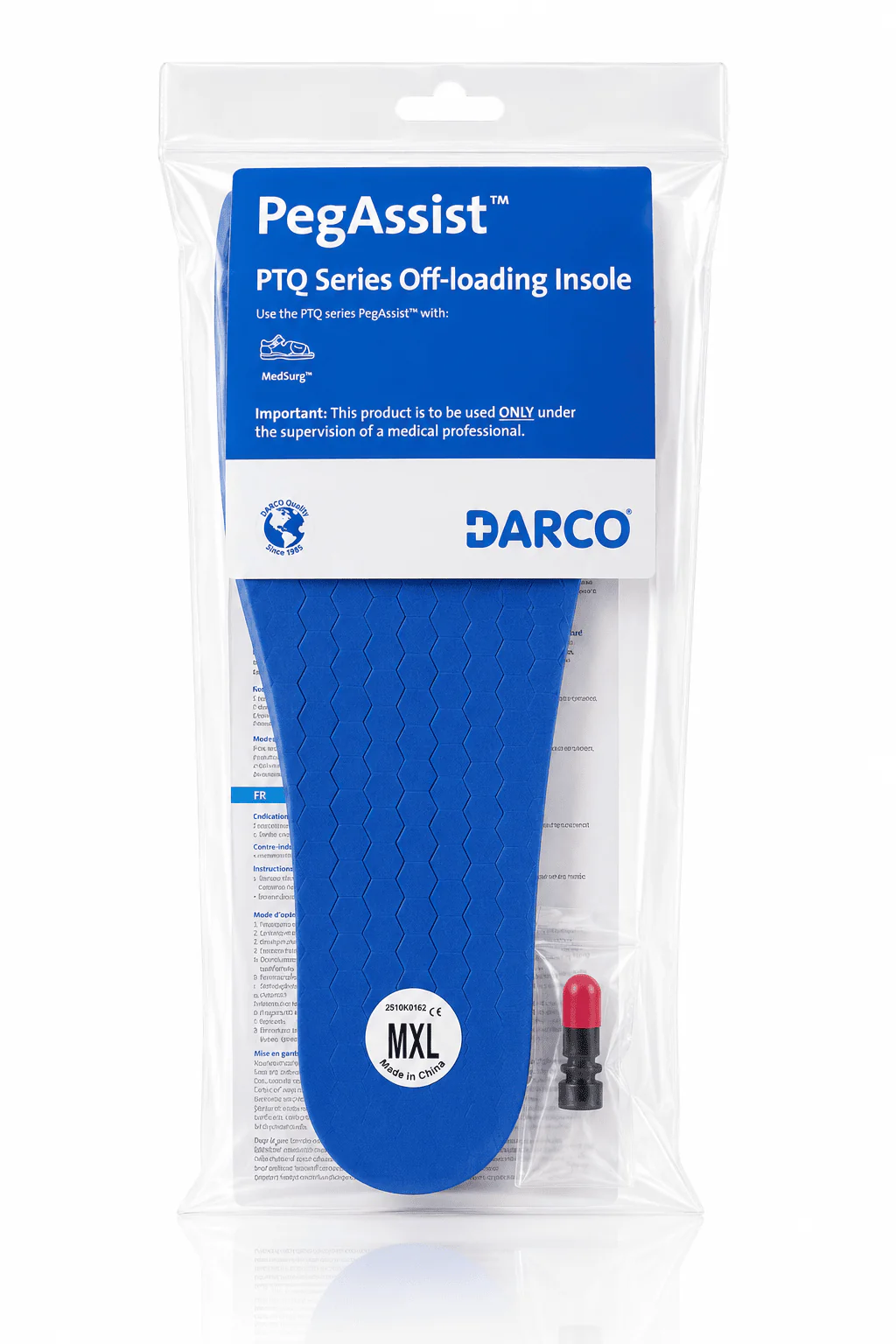

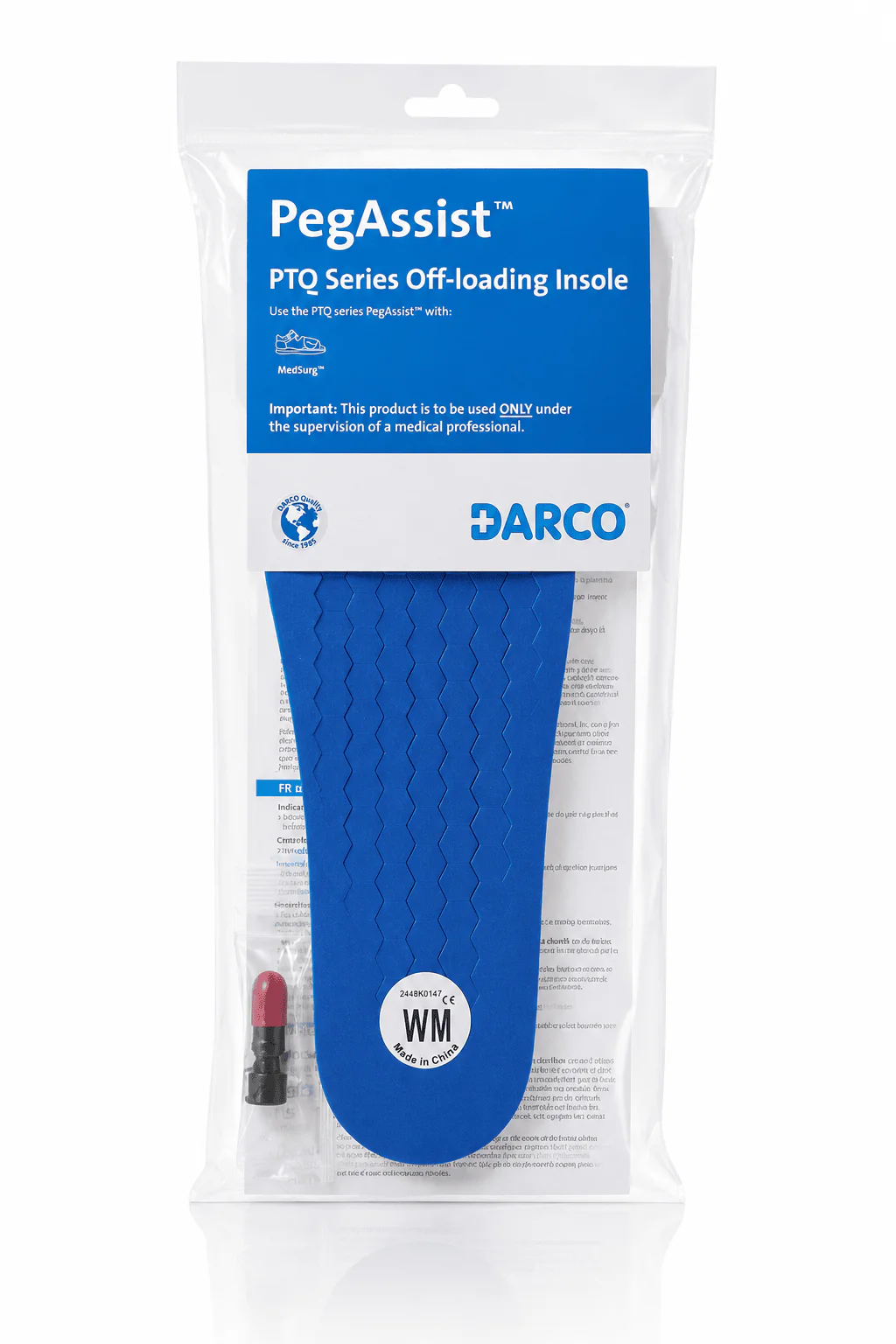

• 1 DARCO PTQ PegAssist offloading insole (selected size)
• Stabilizer board

Resources

PegAssist Insoles Product Sheet (PDF)

PegAssist Insoles Instructions (PDF)
