BD BD Precision Glide Hypodermic Injection Needle

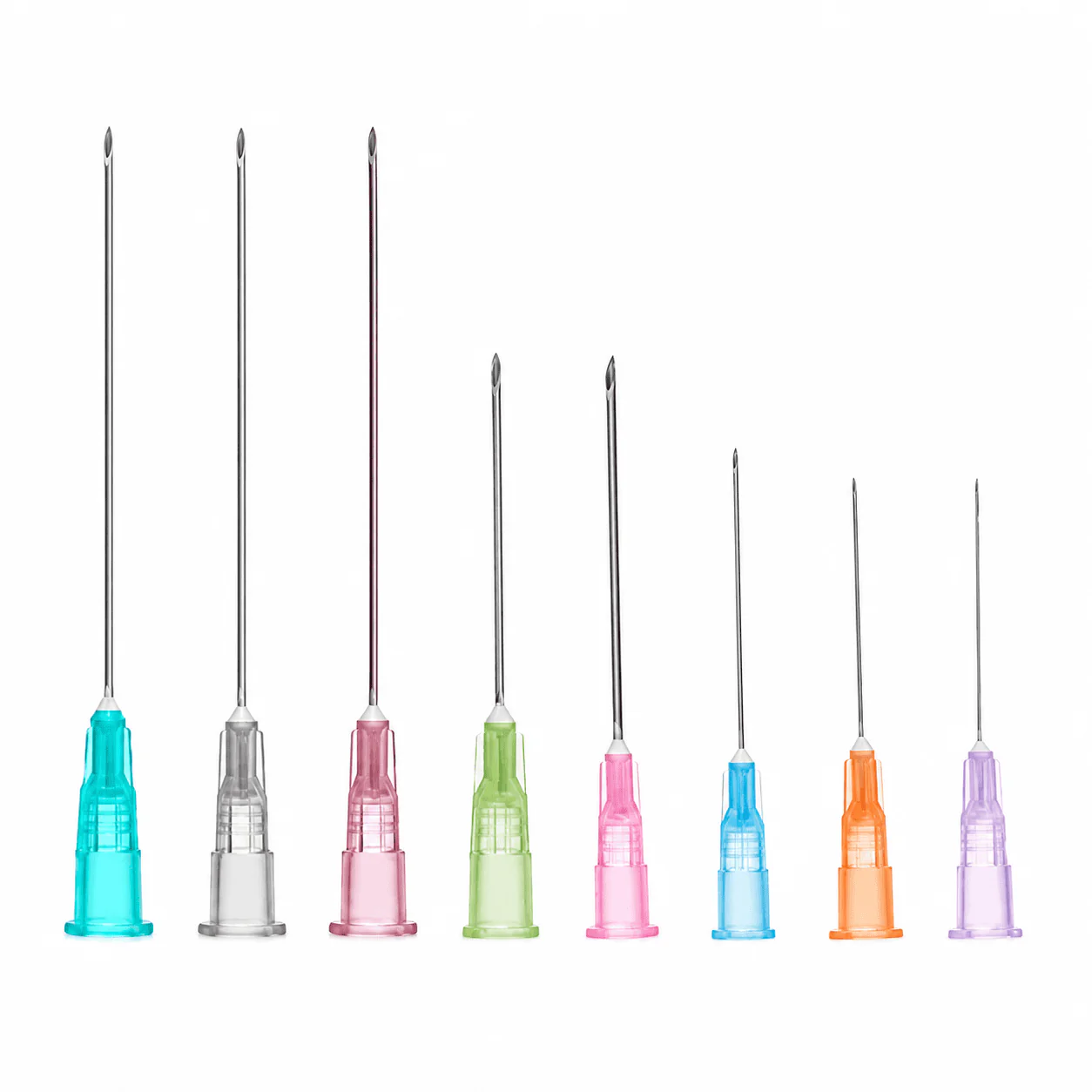

BD PrecisionGlide™ Injection Needles feature a thin-wall, tri-bevel tip design with BD's micro-bonded lubricant, engineered by the manufacturer to provide ease of penetration and a smooth injection experience. Available across a full range of gauges and lengths, these single-use, sterile needles are designed to meet the needs of any clinical application.

Features and Benefits

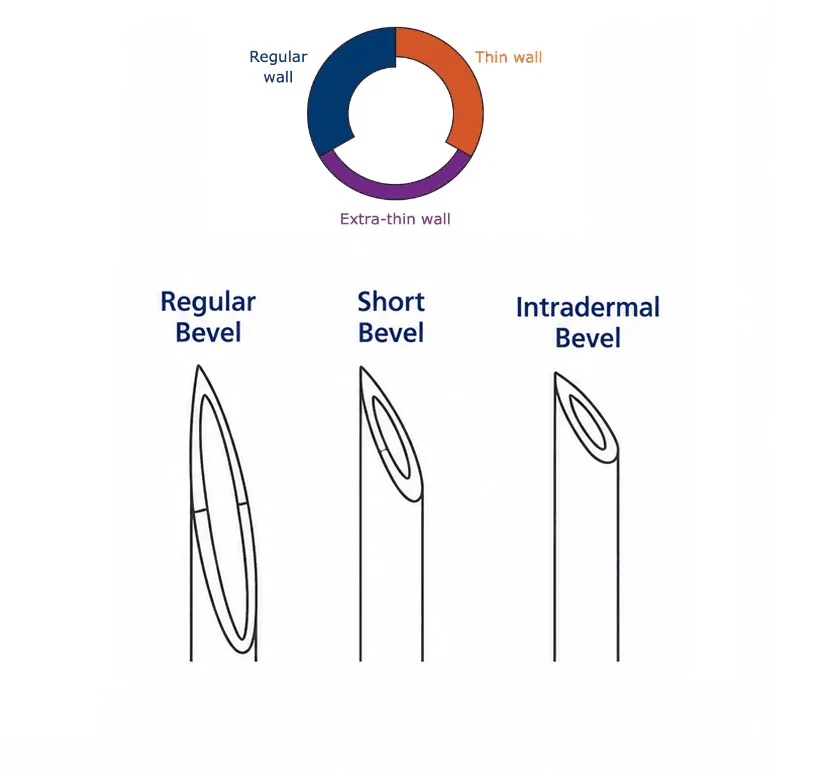

• Thin-wall needles: BD states that a thin-wall needle may allow use of a smaller gauge with a flow rate similar to a regular-wall needle one gauge larger
• Tri-bevel tip designed for smooth, controlled penetration
• BD micro-bonded lubricant coating to help reduce insertion resistance
• Manufactured to ISO standards for cannula stiffness and resistance to breakage
• Regular-wall needles: available for gauges outside the thin-wall range, aligned with current industry guidelines
• Single-use, sterile, and individually blister-packed

Indications

Intended for use in the administration of injectable medications and fluids by a qualified healthcare professional. Consult a healthcare professional for guidance on selecting the appropriate gauge and length for a specific procedure.

Contraindications

For single use only; do not reuse or reprocess. Not intended for use beyond the labeled expiry date or if the sterile packaging is opened or damaged.

Specifications

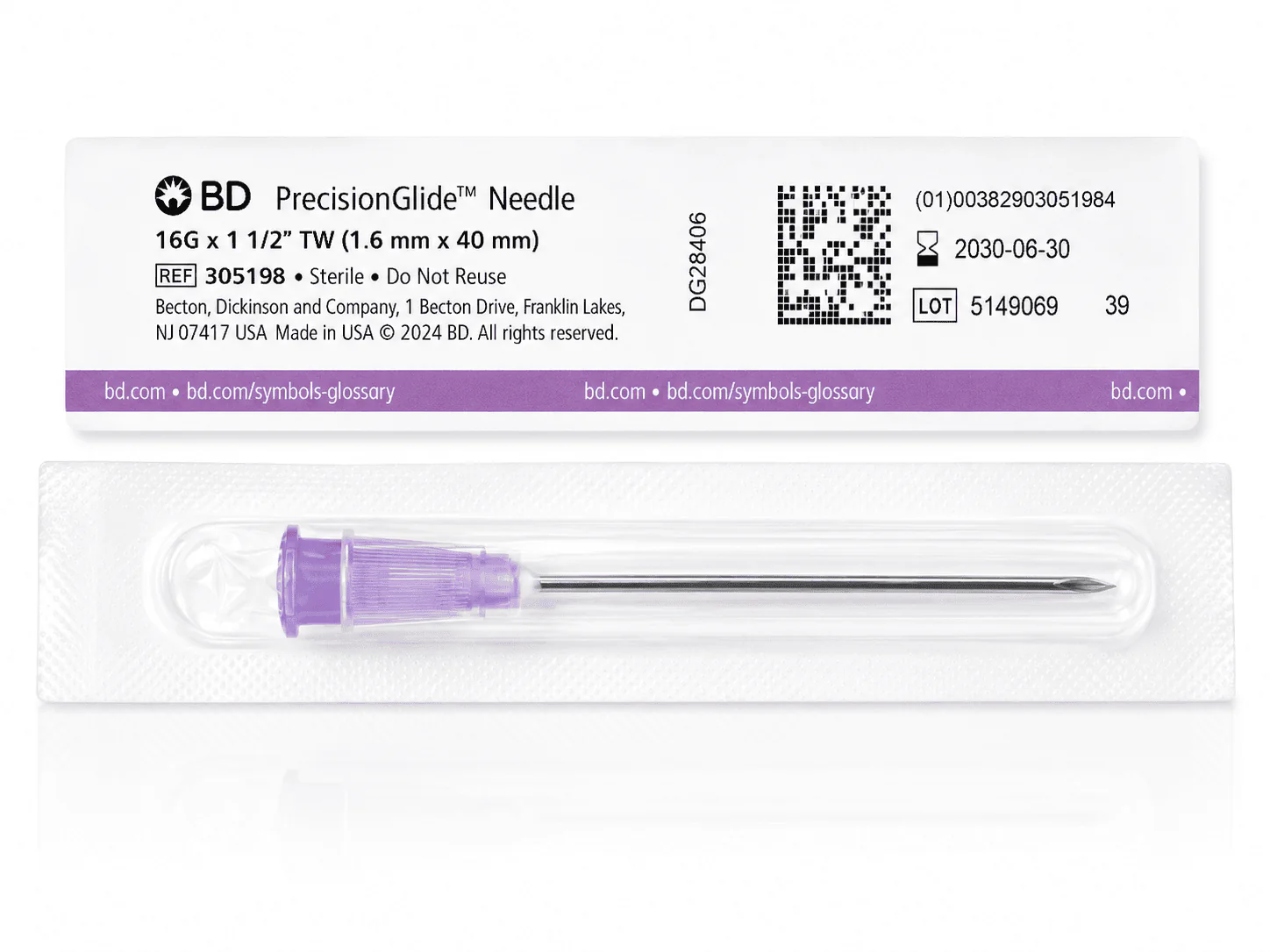

REF 305198	16G x 1 1/2 in, Thin Wall (1.6 mm x 40 mm)

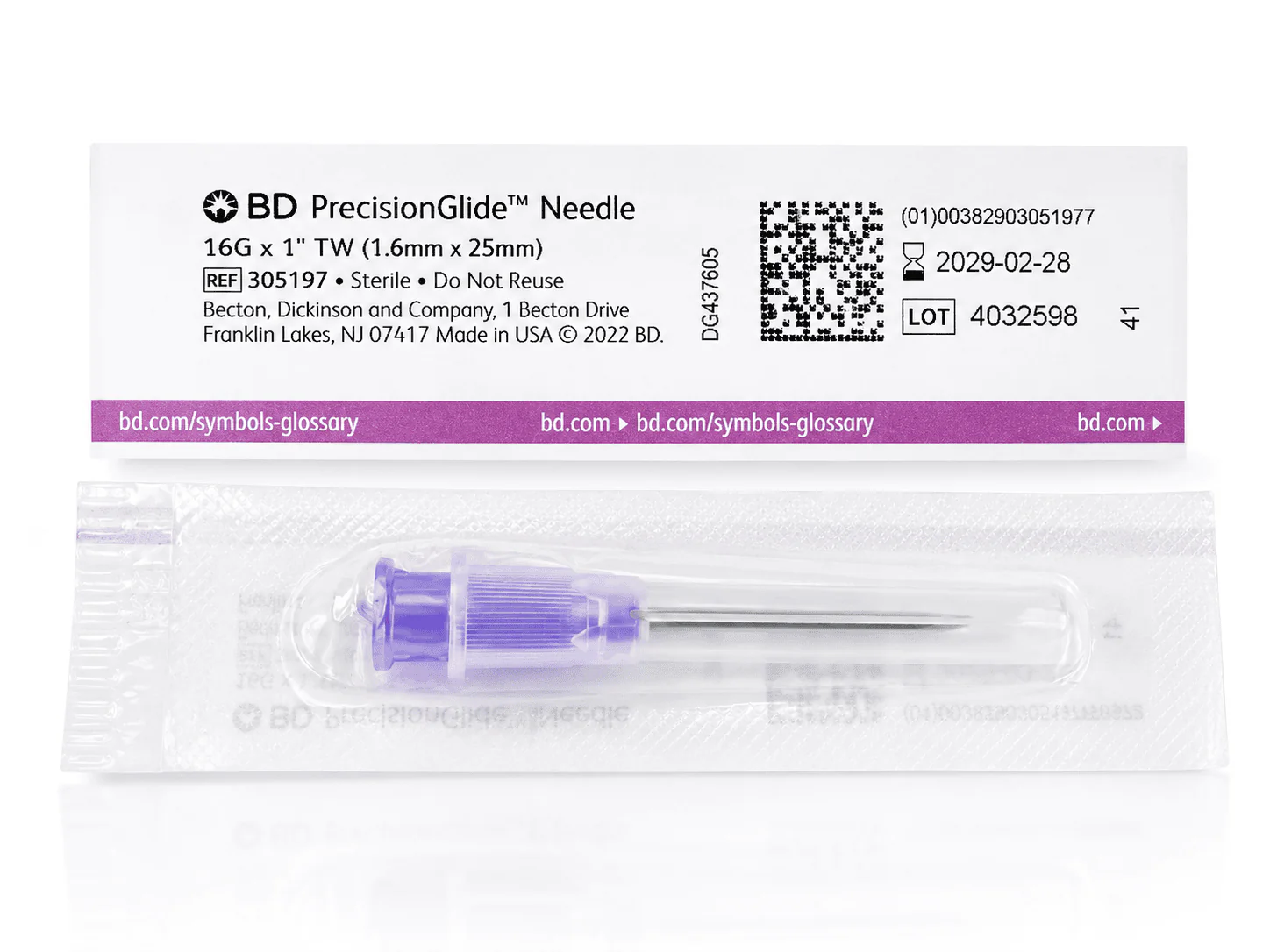

REF 305197	16G x 1 in, Thin Wall (1.6 mm x 25 mm)

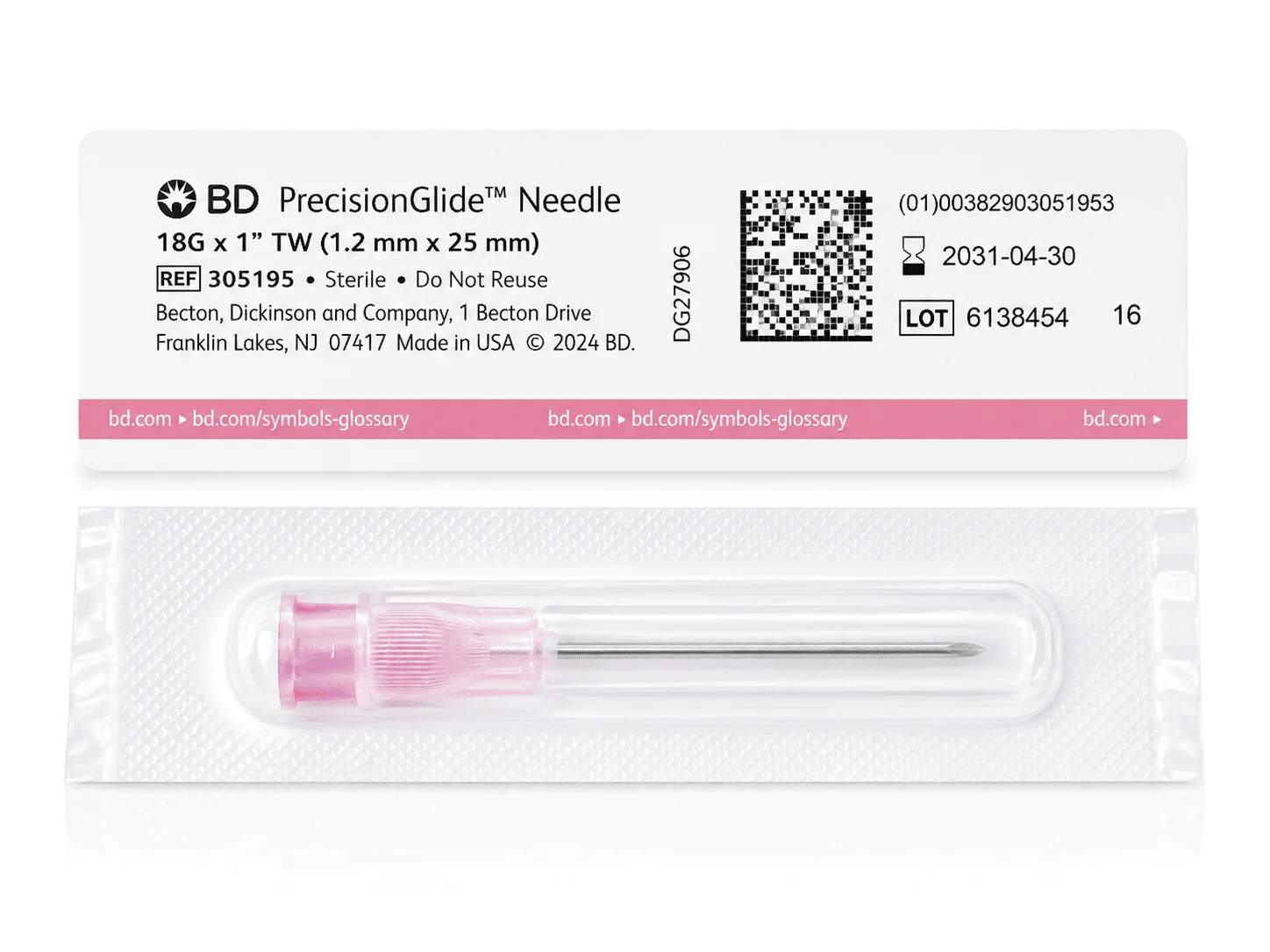

REF 305195	18G x 1 in, Thin Wall (1.2 mm x 25 mm)

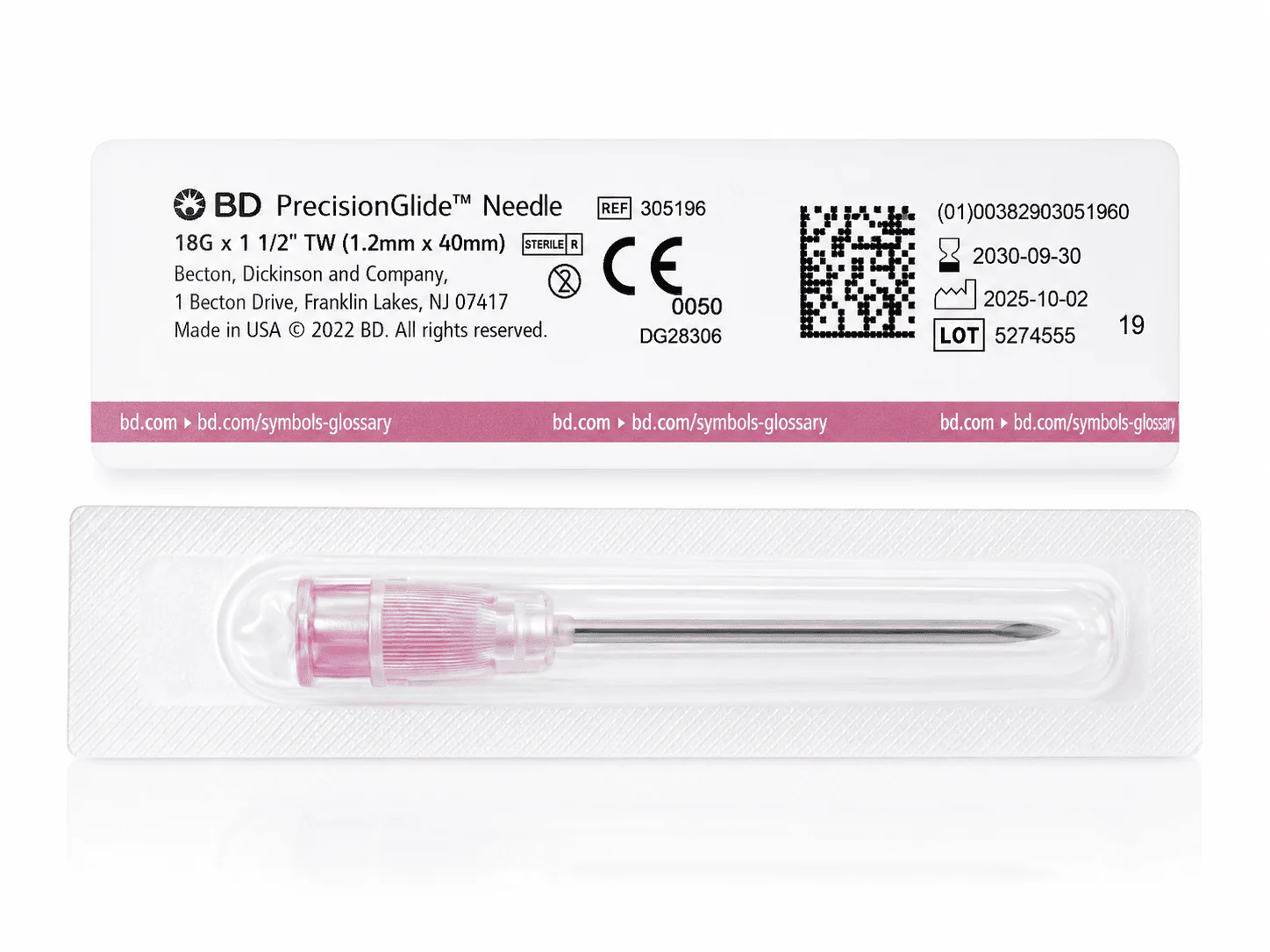

REF 305196	18G x 1 1/2 in, Thin Wall (1.2 mm x 40 mm)

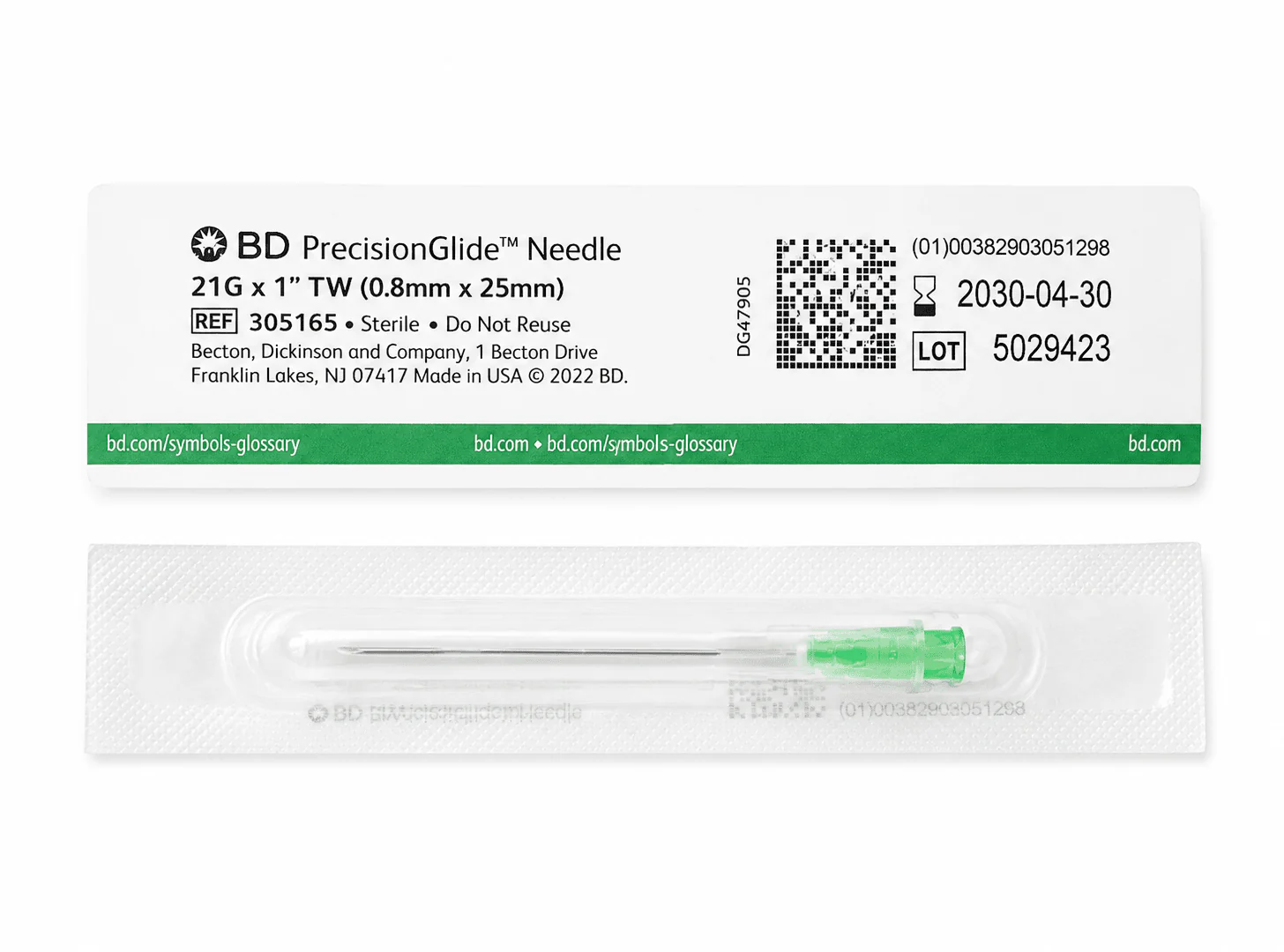

REF 305165	21G x 1 in, Thin Wall (0.8 mm x 25 mm)

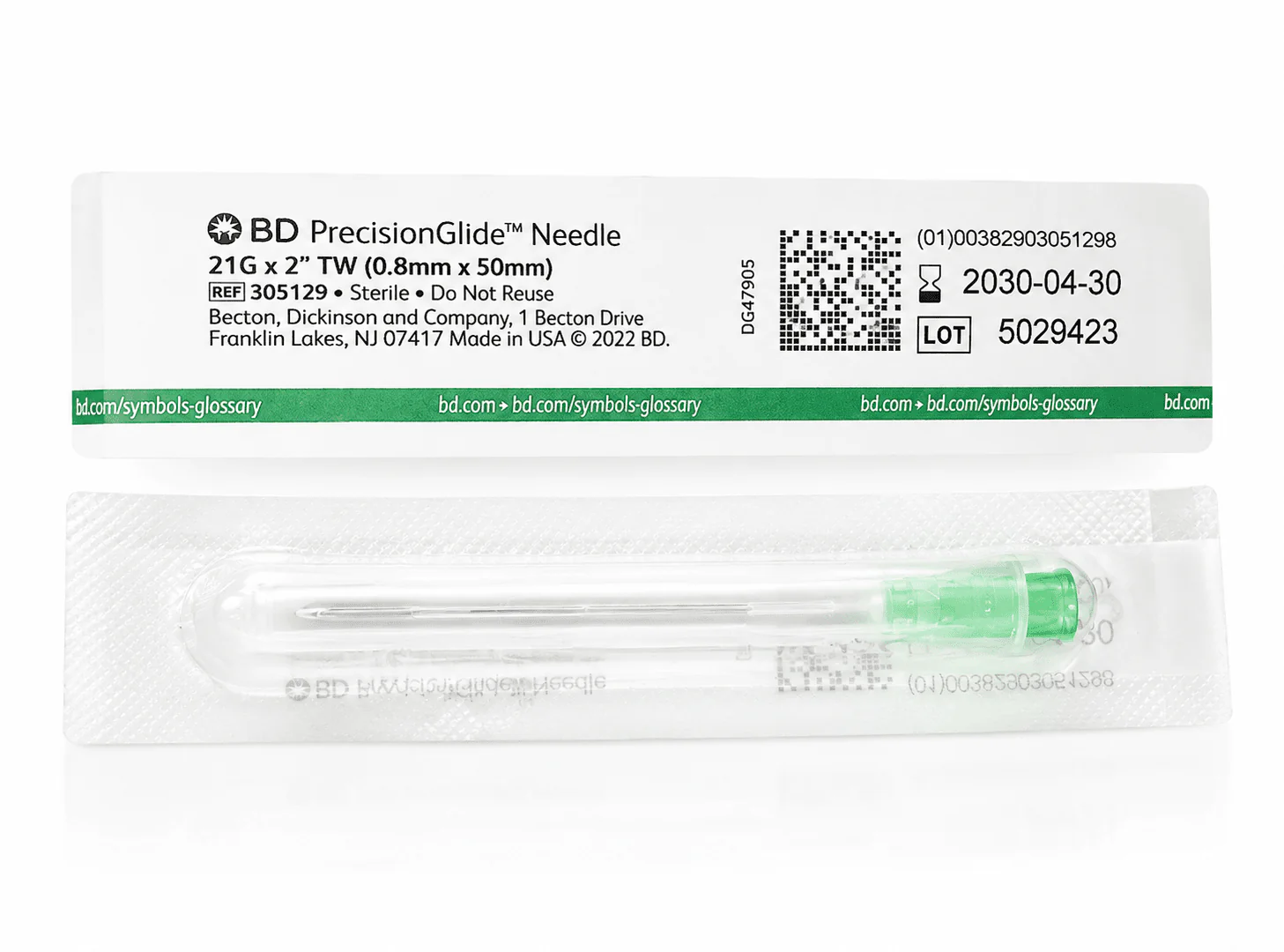

REF 305129	21G x 2 in, Thin Wall (0.8 mm x 50 mm)

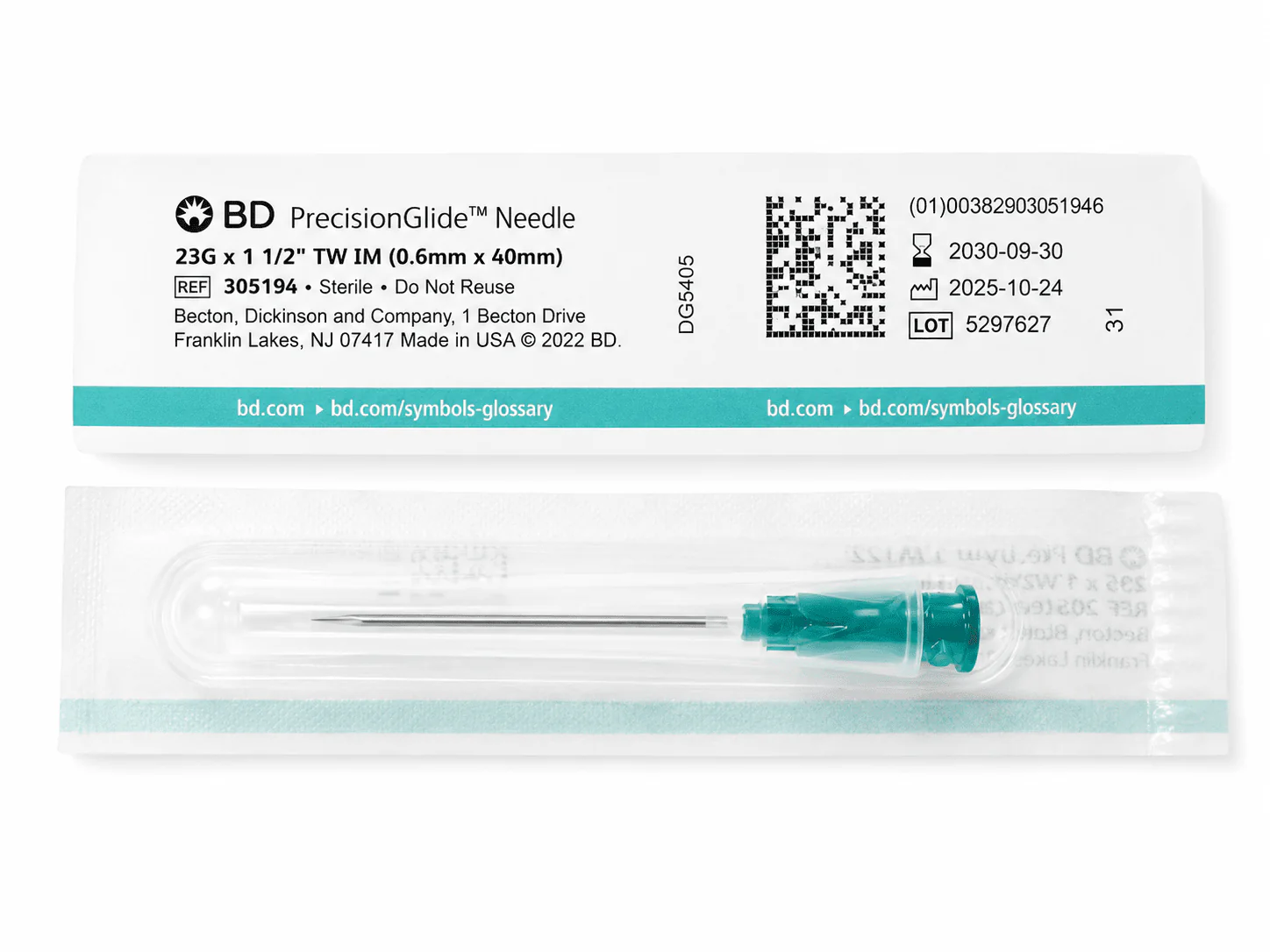

REF 305194	23G x 1 1/2 in, Thin Wall, IM (0.6 mm x 40 mm)

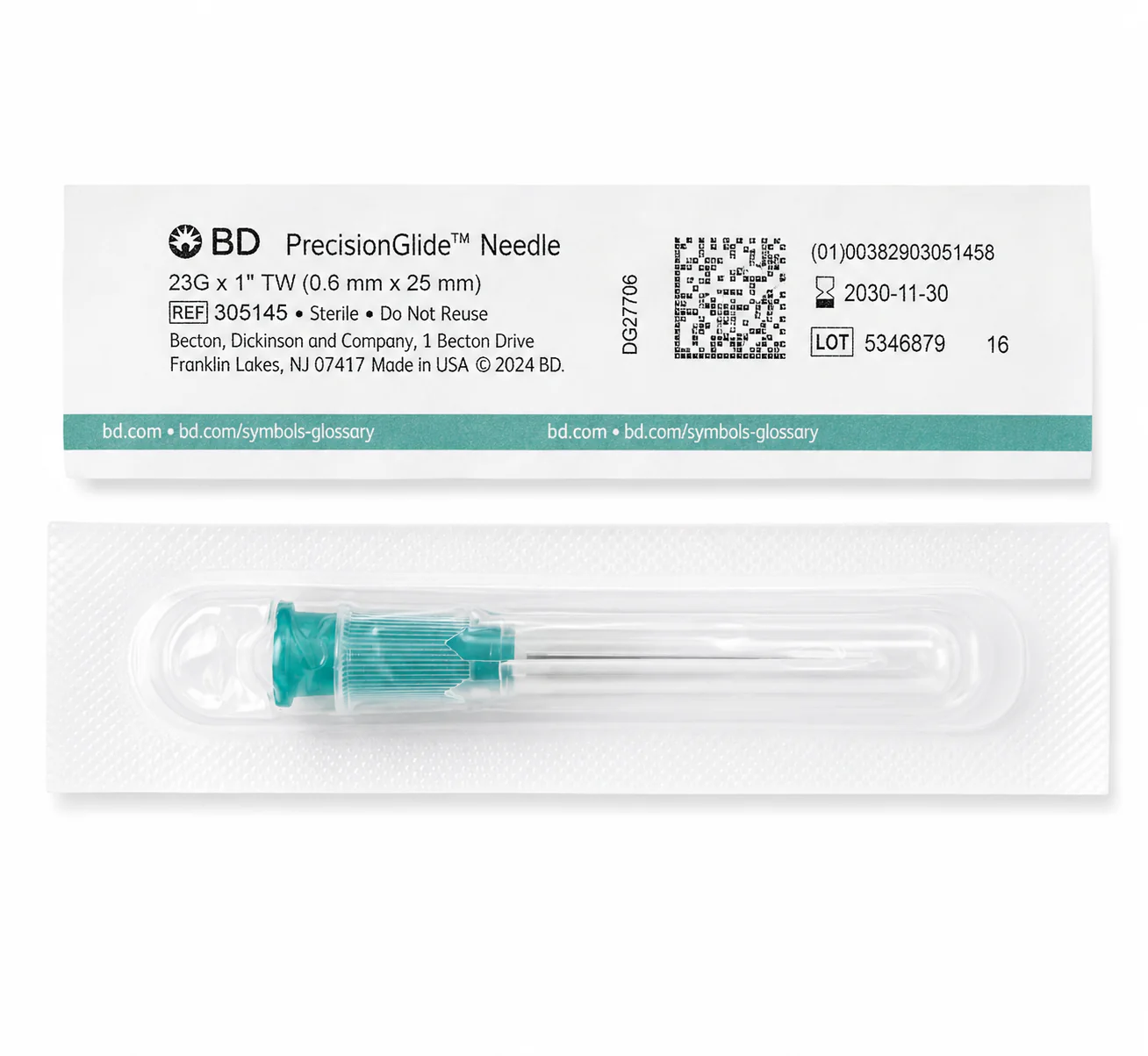

REF 305145	23G x 1 in, Thin Wall (0.6 mm x 25 mm)

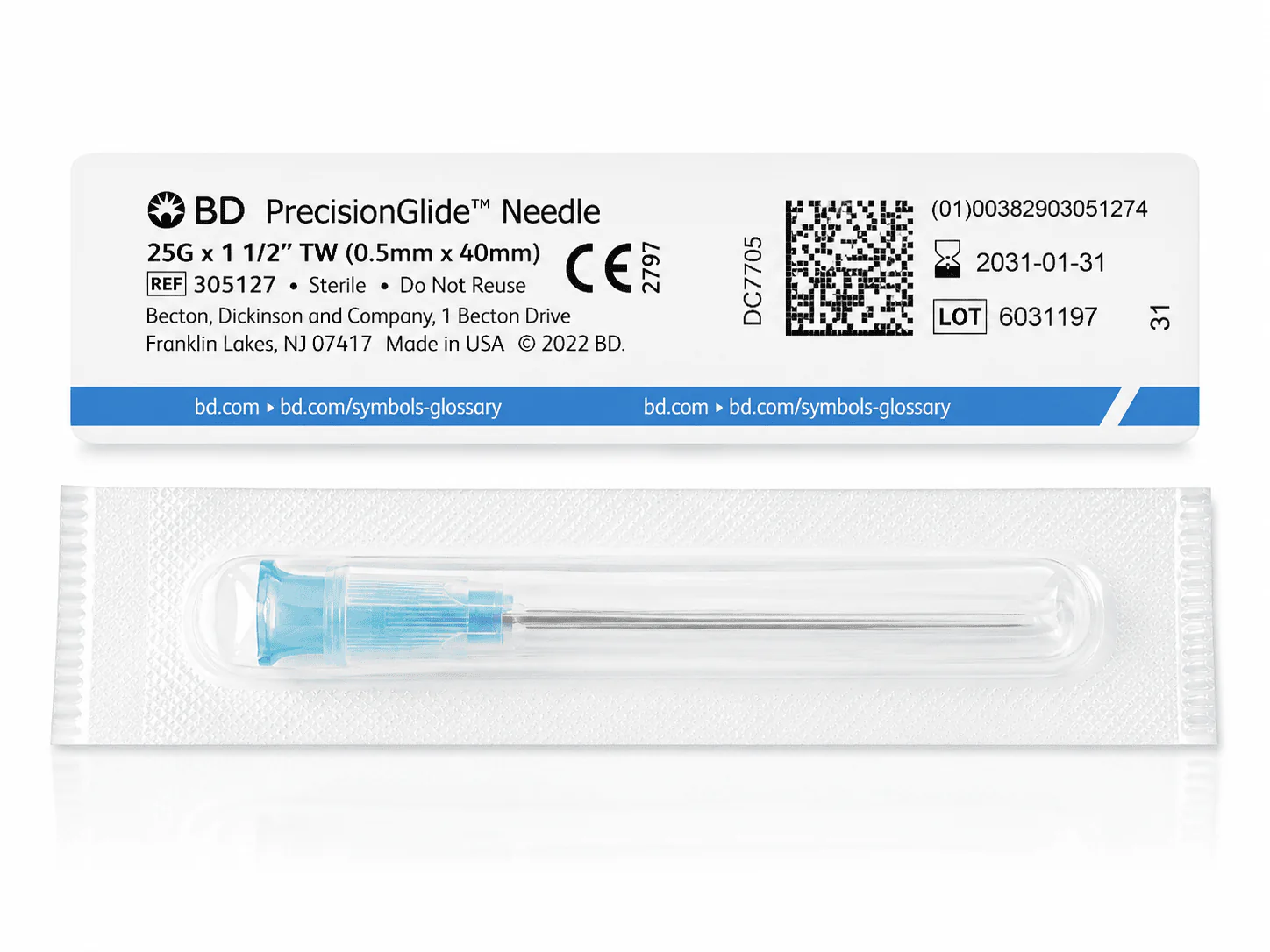

REF 305127	25G x 1 1/2 in, Thin Wall (0.5 mm x 40 mm)

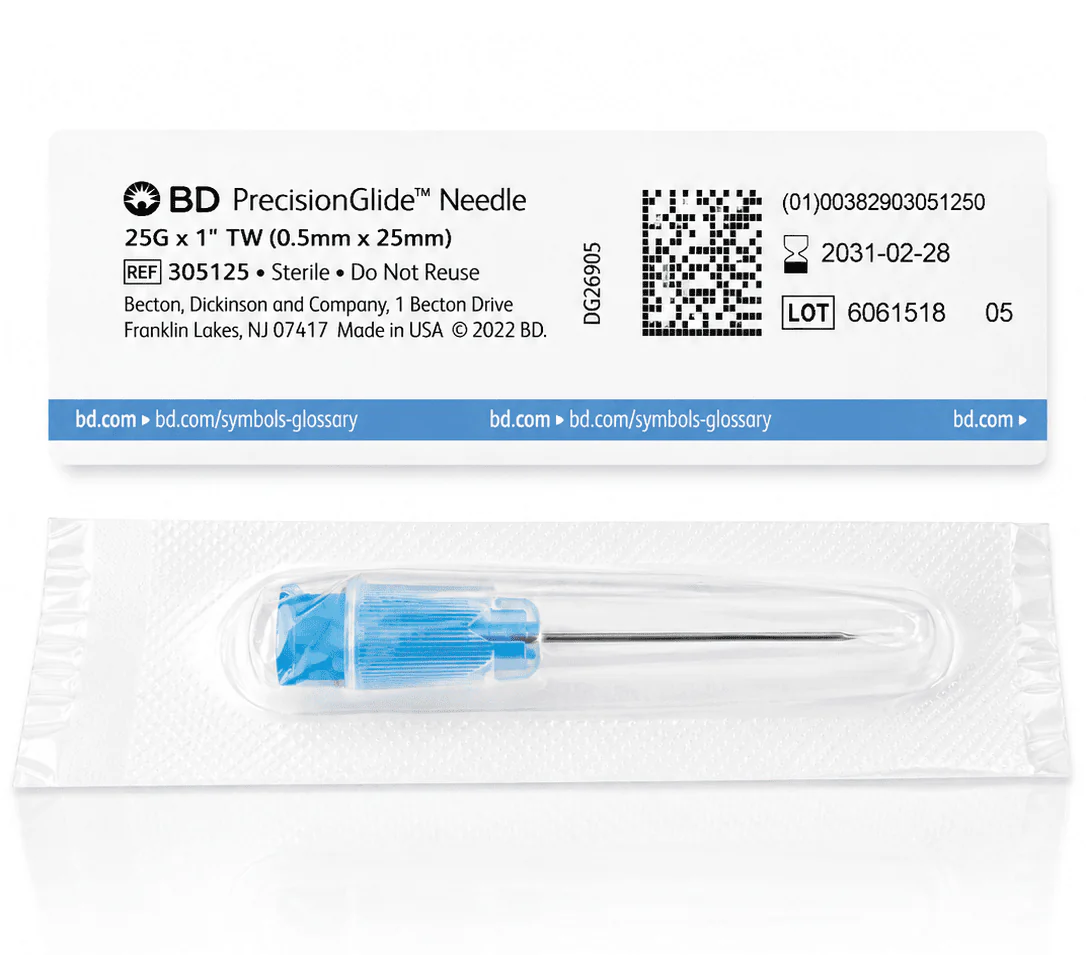

REF 305125	25G x 1 in, Thin Wall (0.5 mm x 25 mm)

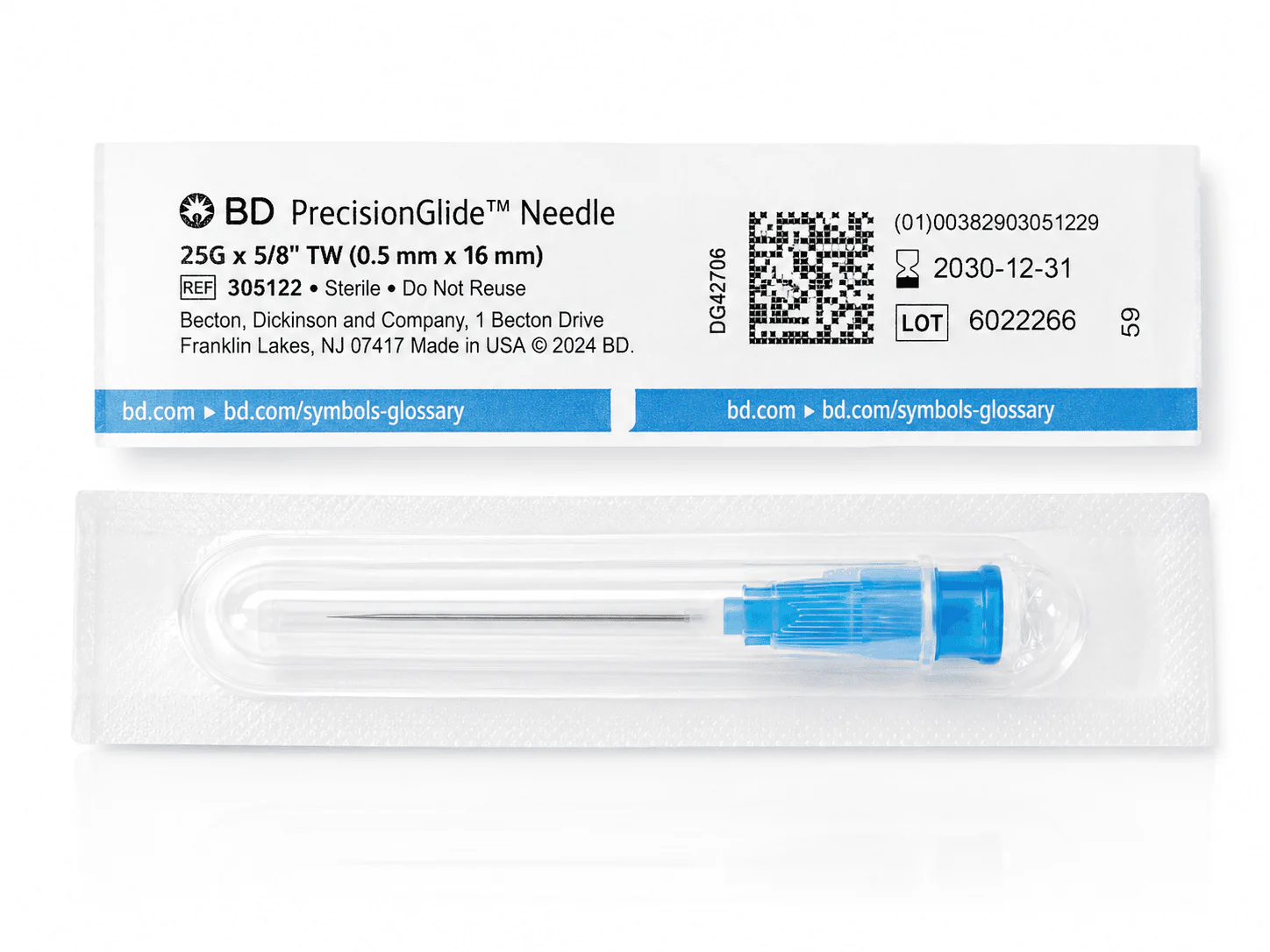

REF 305122	25G x 5/8 in, Thin Wall (0.5 mm x 16 mm)

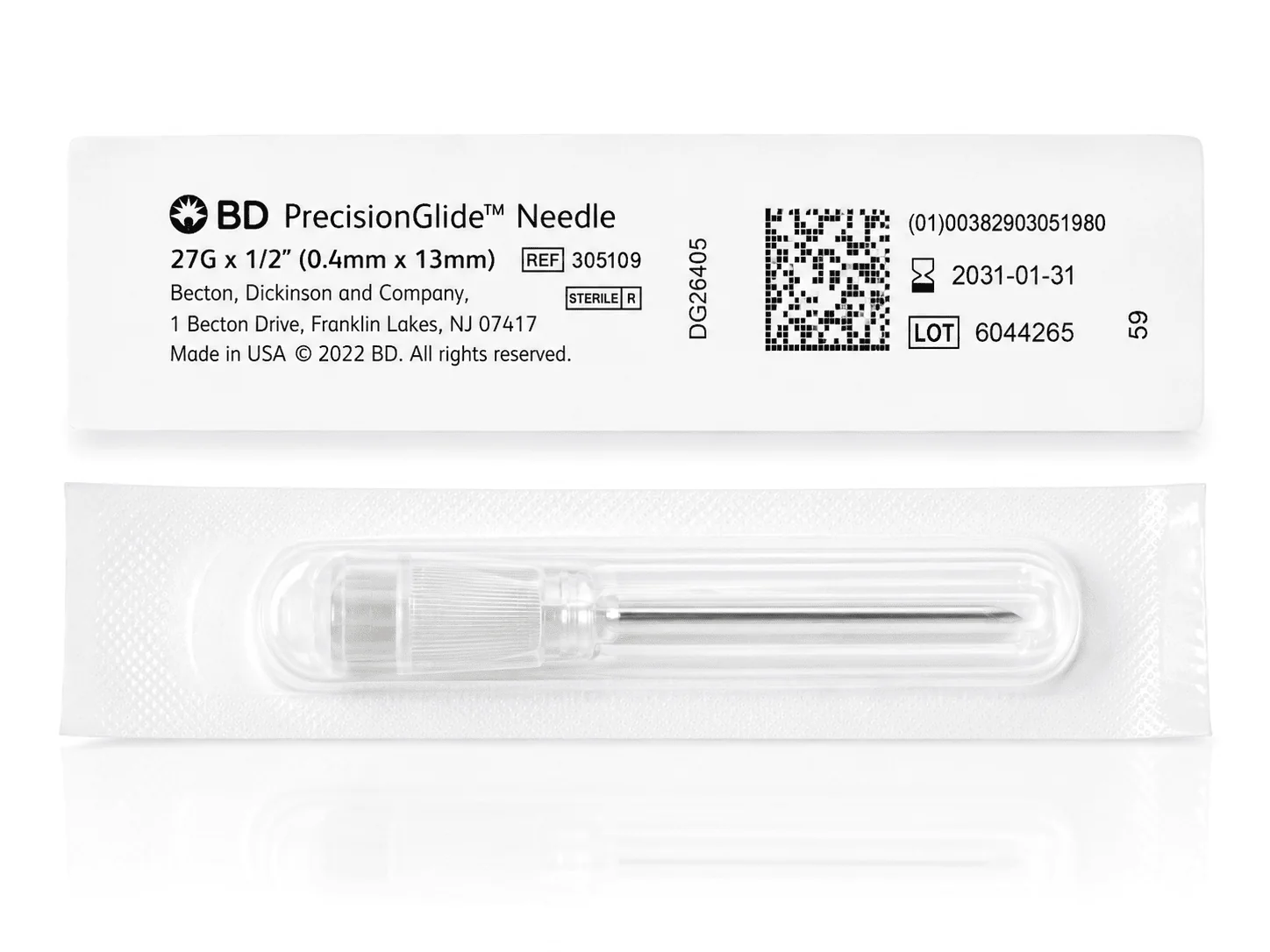

REF 305109	27G x 1/2 in, Regular Wall (0.4 mm x 13 mm)

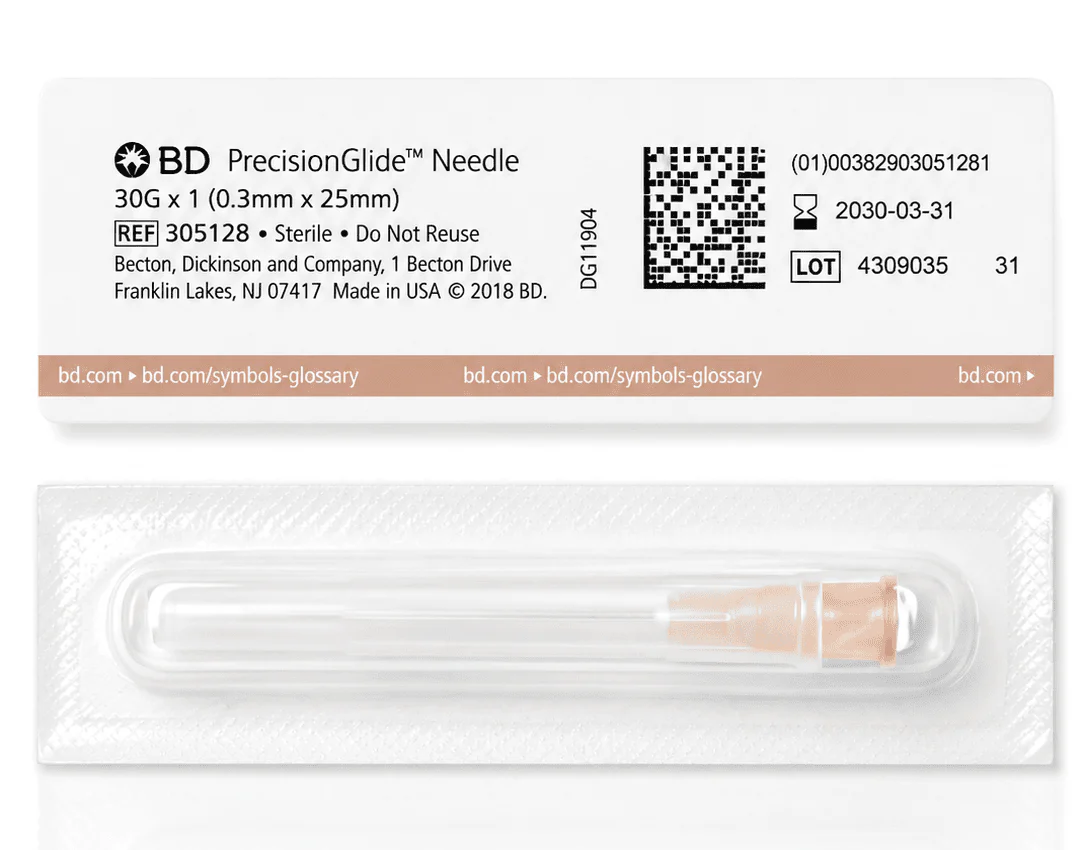

REF 305128	30G x 1 in, Regular Wall (0.3 mm x 25 mm)

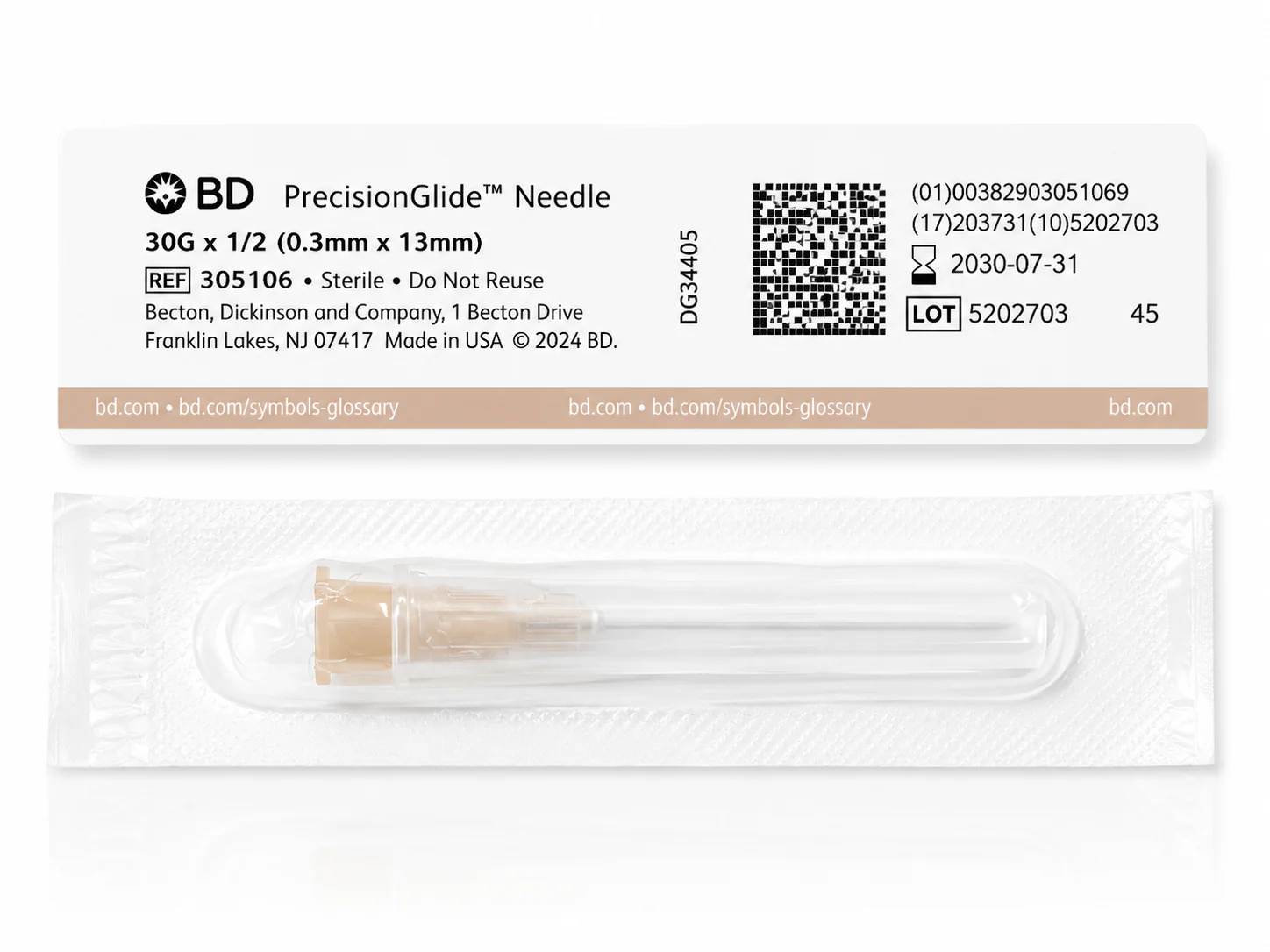

REF 305106	30G x 1/2 in, Regular Wall (0.3 mm x 13 mm)

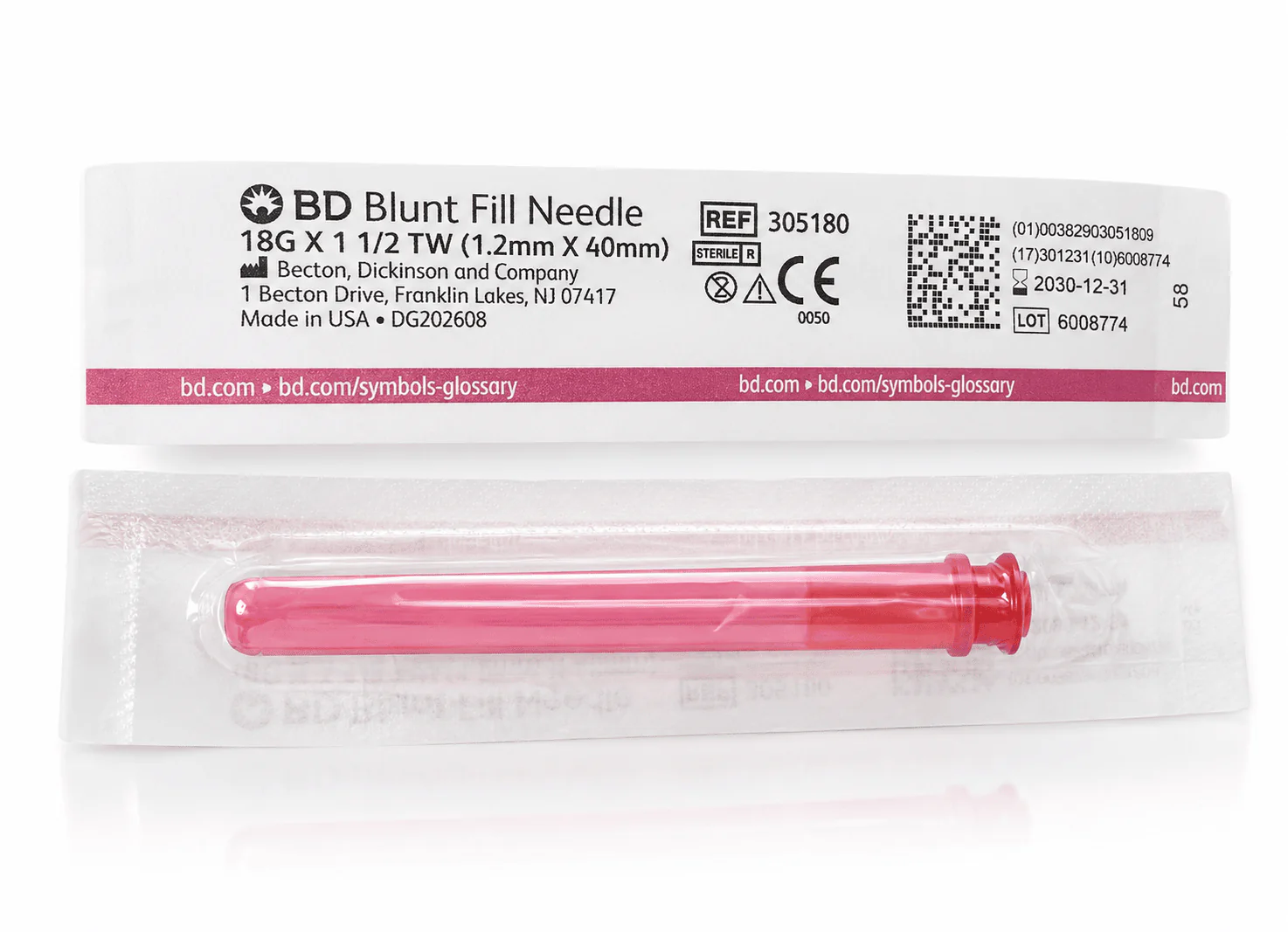

Also Available — Blunt Fill Needle (Not for Injection)

REF 305180

18G x 1 1/2 in, Regular Wall (1.2 mm x 40 mm) — for withdrawing medication from a vial or ampoule only

Sizing

Select gauge and length based on the injection type, medication viscosity, and patient factors involved. As a general guide: thicker gauges (16G–21G) suit higher-viscosity fluids and faster delivery, while finer gauges (23G–30G) suit lower-viscosity medications and more sensitive tissue sites.

Care Instructions

Store in a cool, dry place away from direct sunlight. Do not use if the sterile blister packaging is opened, torn, or past the expiry date printed on the label. Dispose of used needles in an approved sharps container.

Package Includes

1 x sterile BD PrecisionGlide needle (size of your choice)
